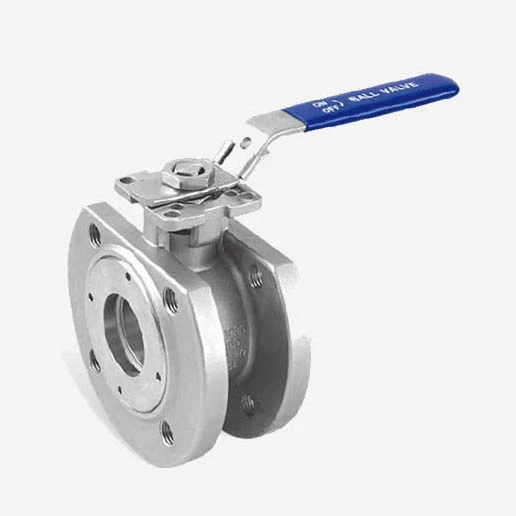

The 1PC Wafer Flanged Ball Valve-SC101M is a valve specifically designed for piping environments where space is limited; its most distinctive feature is its extremely short structural length (face-to-face dimension). It is secured by bolting the valve directly between the flanges at the ends of the pipeline. Offering advantages such as light weight, material efficiency, convenient installation, and low flow resistance, the 1PC Wafer Flanged Ball Valve-SC101M is frequently utilized in automated control systems-particularly within the petroleum, chemical, and water supply and drainage industries-where strict requirements regarding valve installation space must be met.
FEATURES
| PN16 | Full Port |
| Investment Casting | Blow-out-Proof Stem |
| PED97/23/PE(CE0036) Approved | Anti-Static device (option) |
| Design:EN12516 | Locking Device Handle (option) |
| End Flange:DIN2542-DIN2545 | Inspection Testing:API1598,EN12266 |
MATERIAL LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | BODY | CF8/CF8M |
| 2 | CAP | CF8/CF8M |
| 3 | BALL | CF8/CF8M |
| 4 | SEAL | RPTFE |
| 5 | STEM | 304 |
| 6 | STEM PACKING | PTFE |
| 7 | O-RING | NBR |
| 8 | STEM SEAT | PTFE |
| 9 | GLAND | 304 |
| 10 | SPRING WASHERS | 301 |
| 11 | NUT | 304 |
| 12 | WASHER | 304 |
| 13 | HANDLE SLEEVE | PVC |
| 14 | HANDLE | 304 |
| 15 | LOCKING | 304 |
| 16 | BOLT | 304 |
| 17 | BOLT NUT | 304 |
| 18 | BOLT WASHER | 304 |
| 19 | BODY PACKING | PTFE |

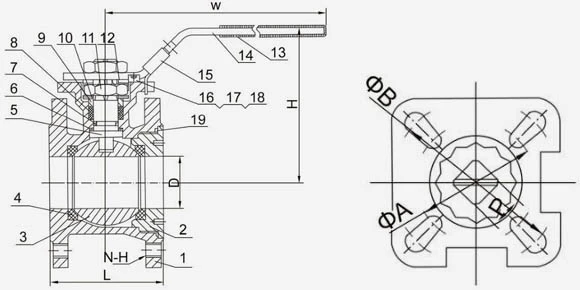

DIMENSIONS
(mm)
| SIZE ITEM | D | P | A | B | N-H | W | H | L | ISO5211 |
| DN15 | 15 | 9 | 36 | 72 | 4-M12 | 140 | 78 | 42 | F04/03 |
| DN20 | 20 | 9 | 36 | 42 | 4-M12 | 140 | 84 | 44 | F04/03 |
| DN25 | 25 | 11 | 42 | 50 | 4-M12 | 152 | 93 | 50 | F04/03 |
| DN32 | 32 | 11 | 42 | 50 | 4-M16 | 152 | 105 | 60 | F04/03 |
| DN40 | 40 | 14 | 50 | 70 | 4-M16 | 188 | 112 | 65 | F05/04 |
| DN50 | 50 | 14 | 50 | 70 | 4-M16 | 188 | 120 | 80 | F05/04 |
| DN65 | 65 | 17 | 70 | 102 | 4-M16 | 230 | 145 | 113 | F07/05 |
| DN80 | 76 | 17 | 70 | 102 | 8-M16 | 230 | 155 | 120 | F07/05 |
| DN100 | 94 | 22 | 102 | 102 | 8-M16 | 230 | 189 | 154 | F10 |
